Westlink was engaged to provide a multimodal logistics solution for twenty-six (26) pipe rack modules fabricated in Tianjin, China to be used in the construction of a new polyisobutylene (PIB) unit at the Lubrizol Deer Park Facility in Houston, USA.

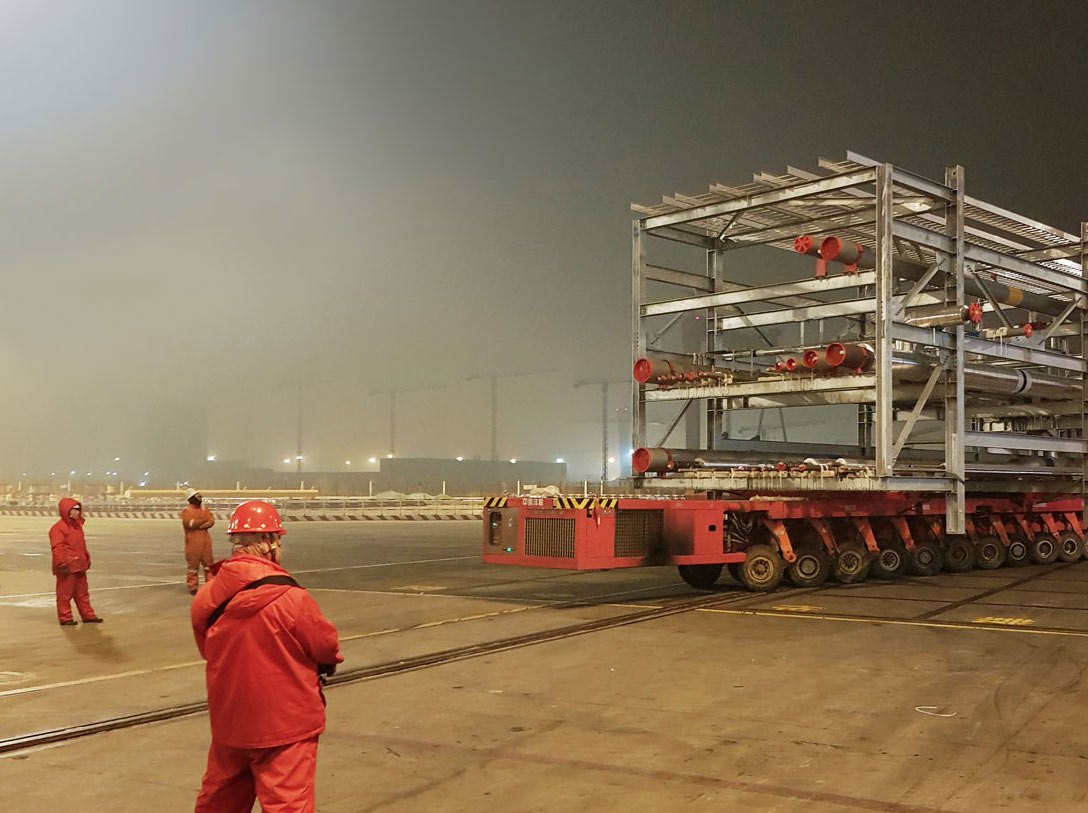

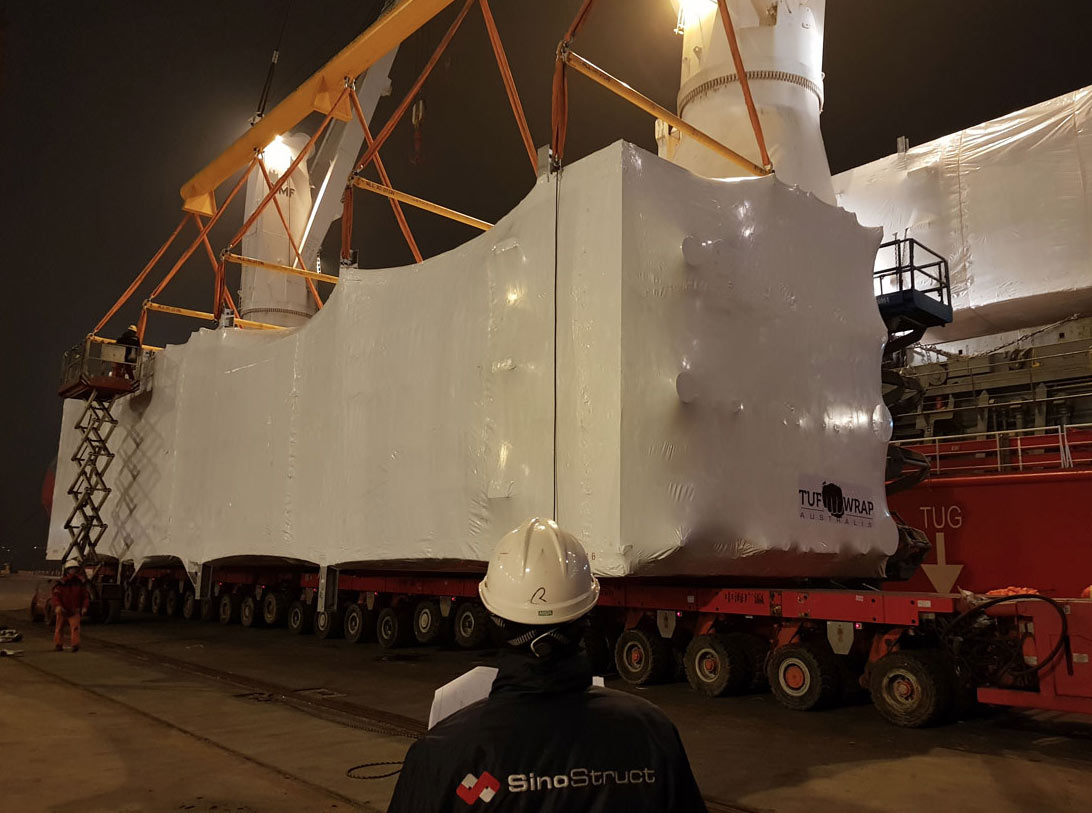

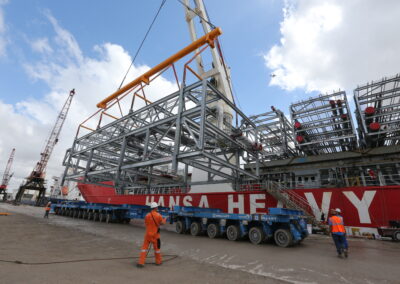

• SPMT – fabrication yard to vessel hook at Lingang

• Heavy Lift Vessel (HLV) – Lingang, Tianjin to Industrial Terminals, Houston

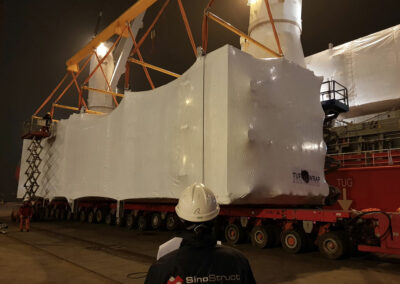

• SPMT – vessel hook to laydown at Industrial Terminals, Houston

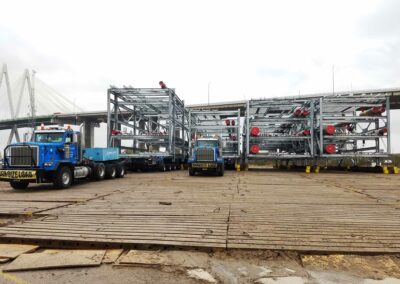

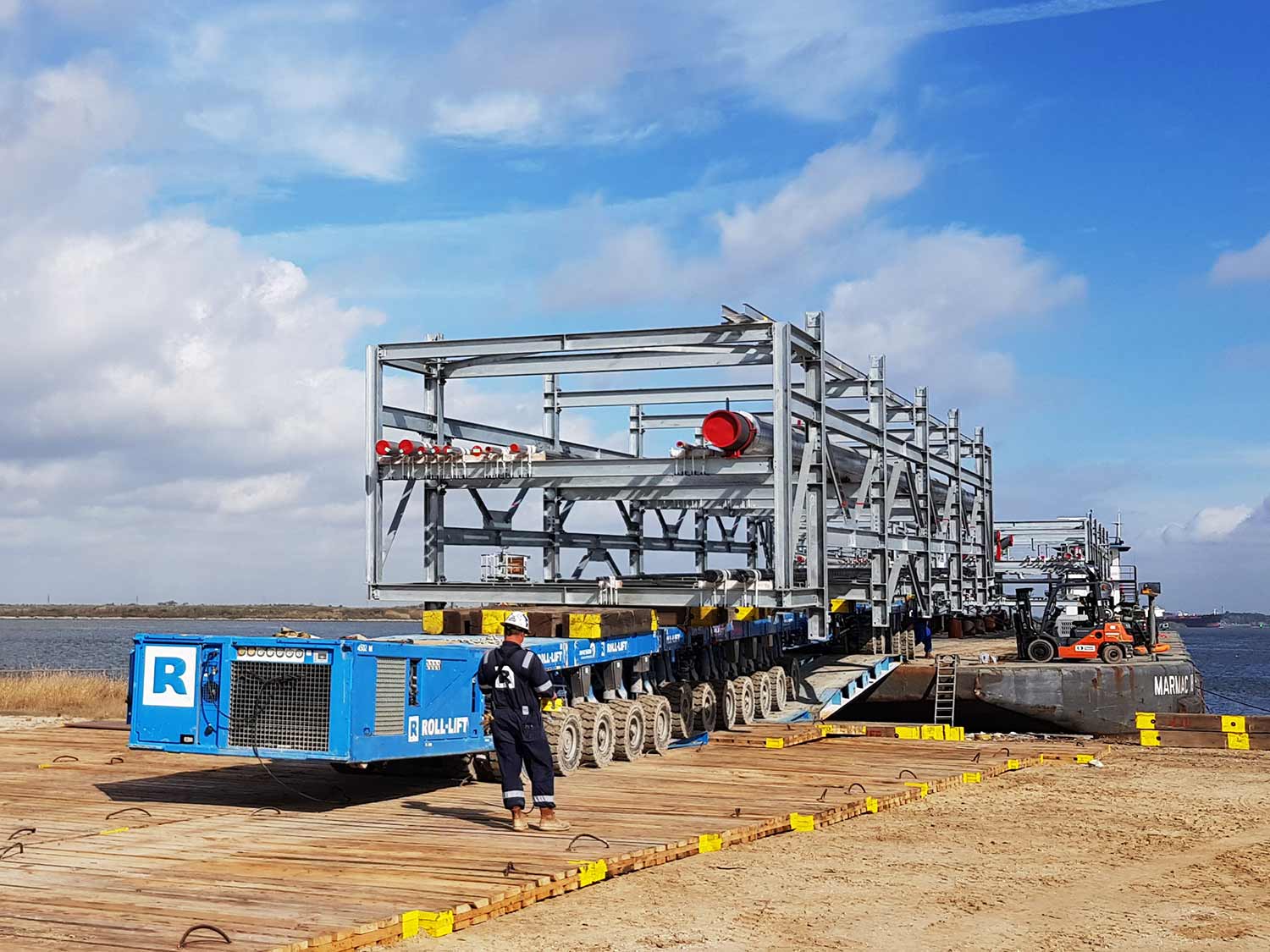

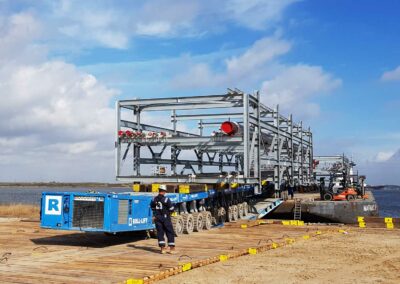

• SPMT, tug and barge RORO operations – Industrial Terminals, Houston to Spilman Island laydown

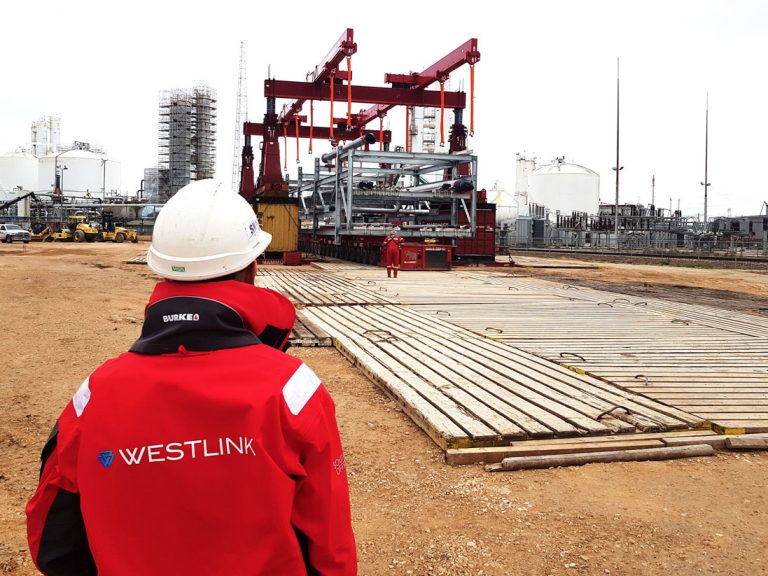

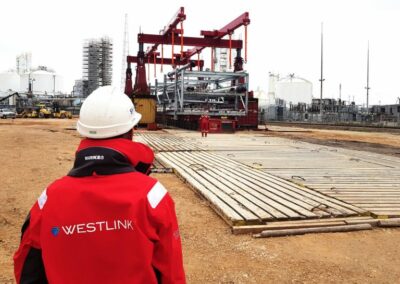

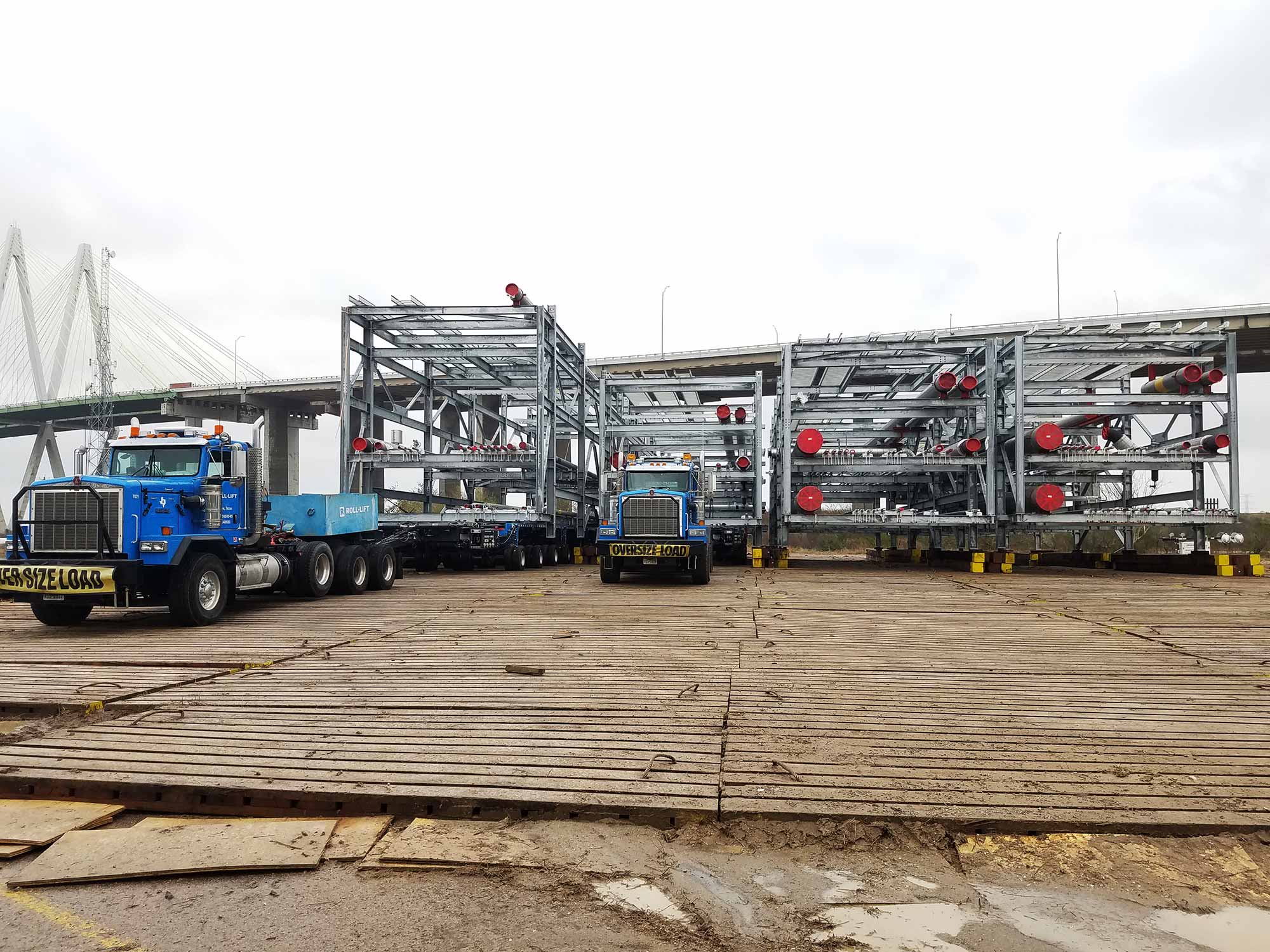

• Heavy Haulage – from Spilman Island laydown to Lubrizol Deer Park Project site

• Zero LTIs

• 32,000 cubic metres (cbm) transported with heaviest lift 70 metric ton (mt)

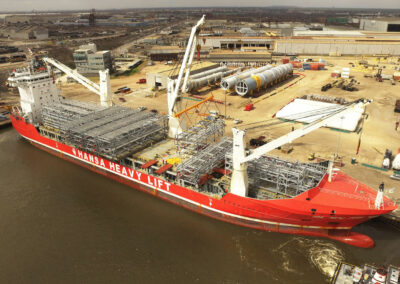

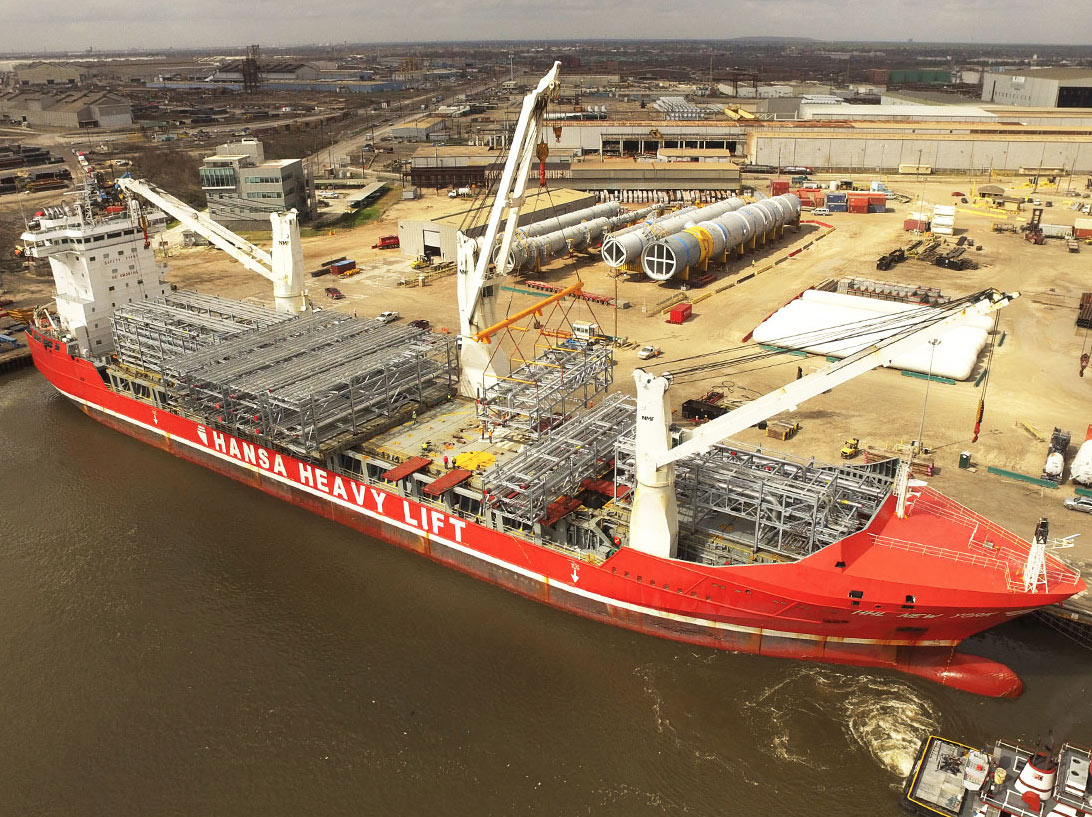

• ‘Flying Deck’ configuration used on HLV to maximise stow

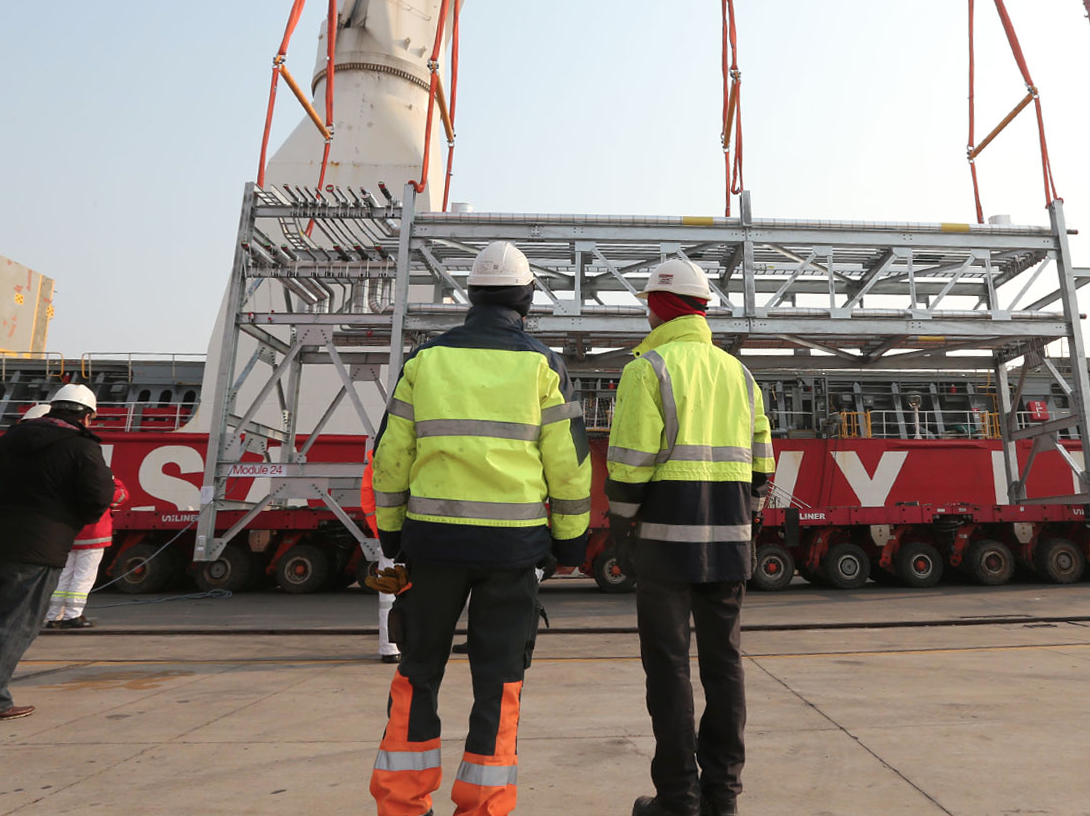

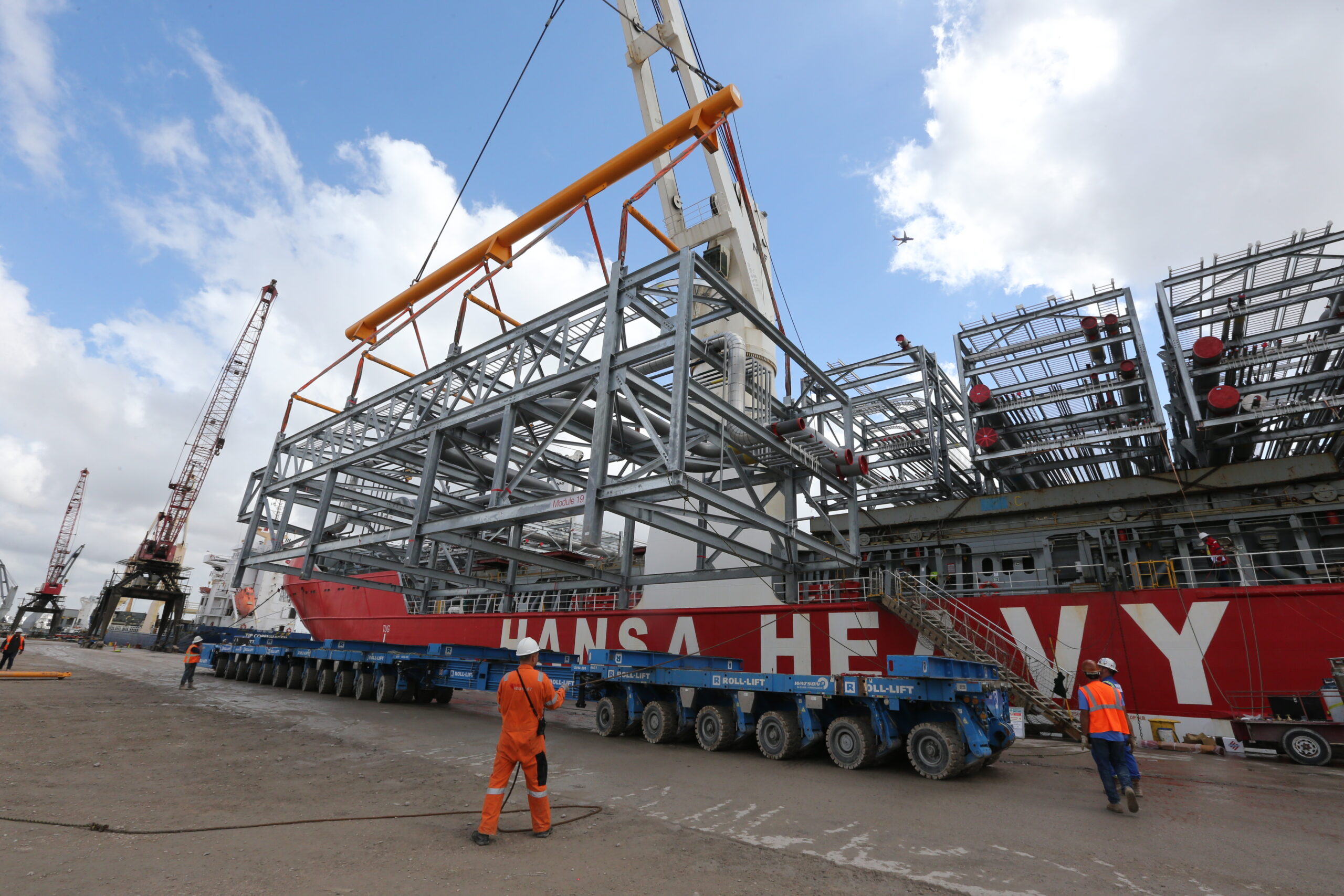

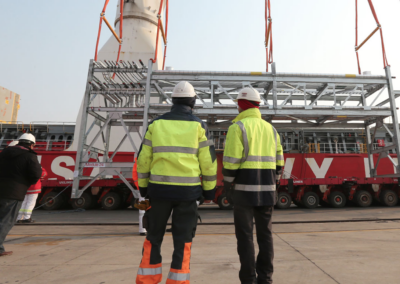

• Custom spreader and rigging arrangement for each pipe rack for true vertical lifts

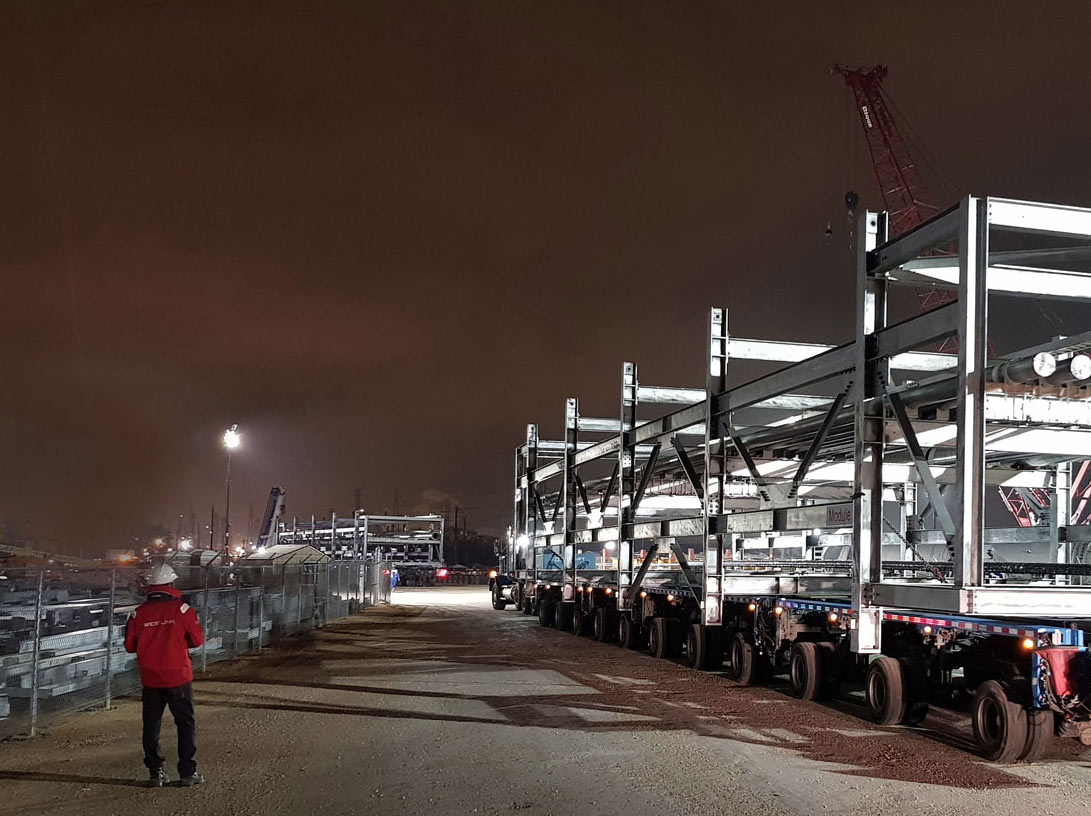

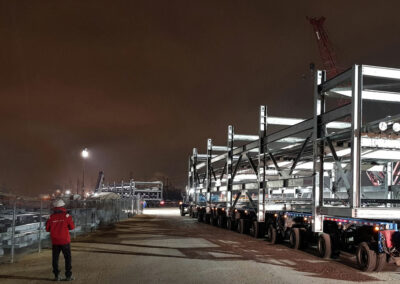

• Transport of modules through busy Houston Industrial Area

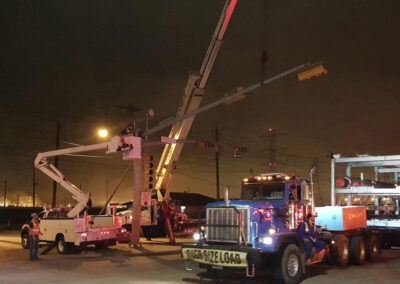

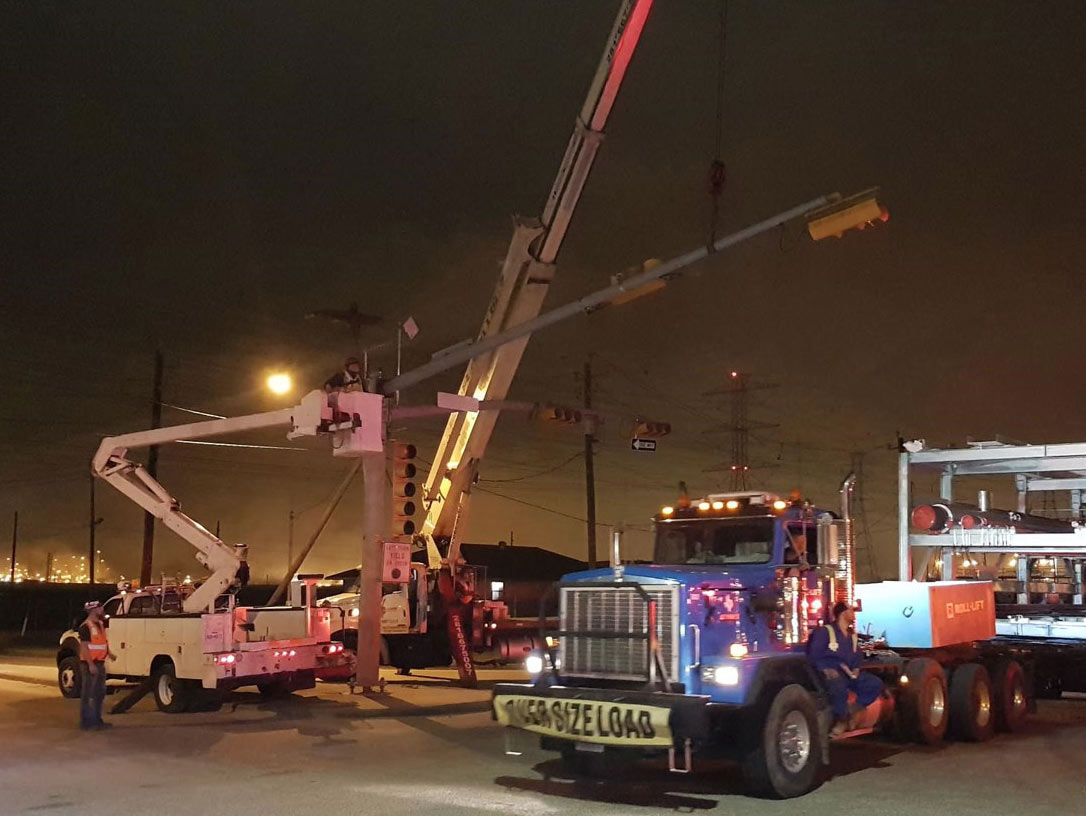

• Traffic control in Houston – police escorts, temporary removal of traffic lights, street signs and lifting of overhead lines

• Maximum module envelope – 36 x 9.5 x 8.5 metres
